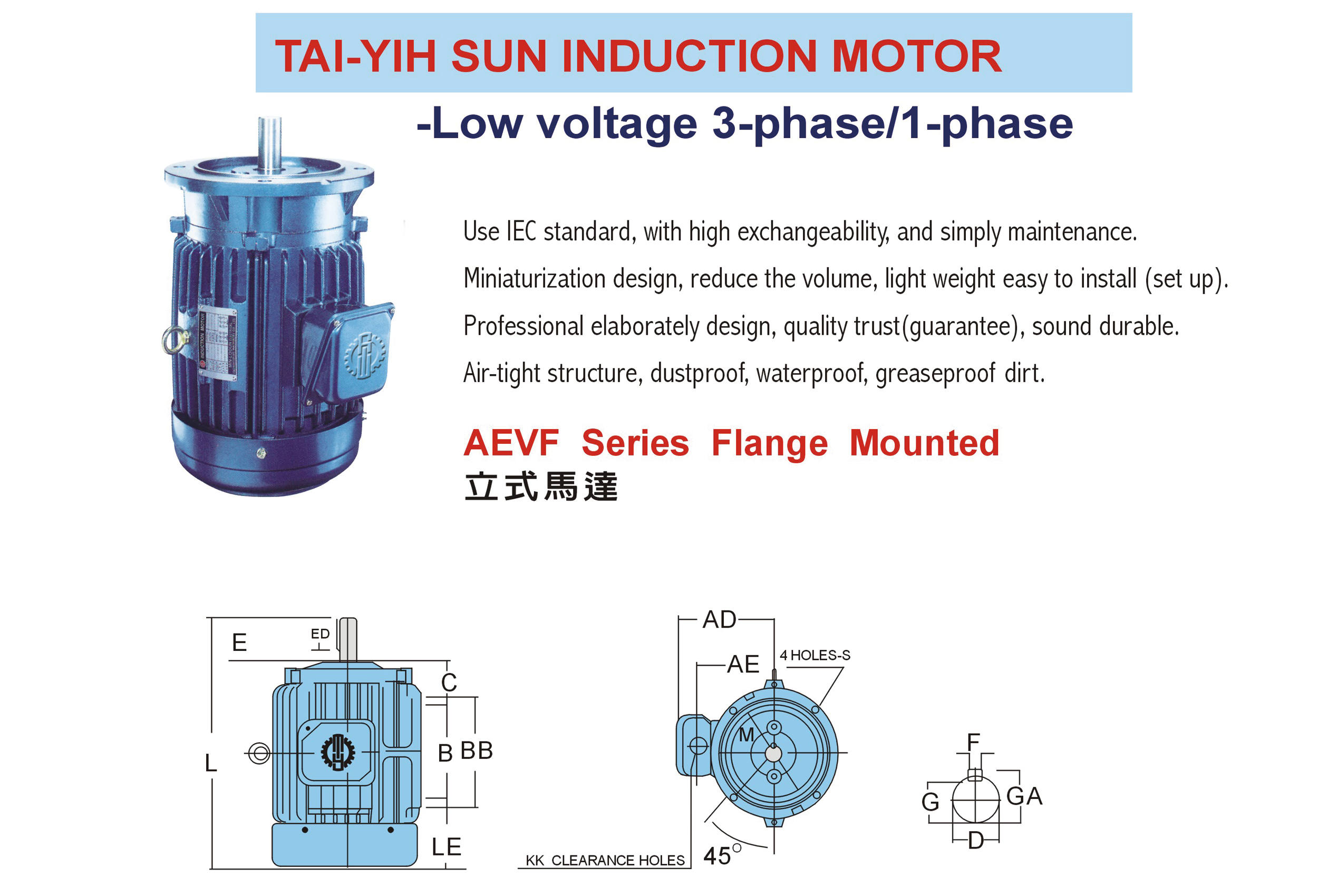

AEVF Series Flange Mounted
| Specifications | ||
|---|---|---|
| Type: | 3-phase squirrel cage induction motor (SCIM) | |
| Protecting: | IP54、IP55 | |
| Mounting method: | DFEF/VFEF foot mounted；DFVF/VFVF flange mounted | |
| Cooling method: | Forced cooling (Ic416) | |
| Poles: | 4P，6P，8P | |
| Rated output: | 4P: 1/4~60HP；6P: 1/4~50HP；8P: 1/2~30HP | |
| Input power unit: | 3Phase，220/380/415/440/460V，50/60Hz | |
| Time rating: | Continuous rated | |
| Torque control: | 60Hz~10Hz constant torque | |
| Starting torque: | Rating torque 125% | |
| Insulation class: | F class | |
| Environmental conditions | ||
|---|---|---|
| Installation location: | Indoor ( keeping off the corrosiveness gas and dirt) | |
| Indicated altitude: | Under 1000M height above sea level | |
| Temperature: | -15OC~40℃ | |
| Standard turn toward: | It'll counterclockwise that it turn one's face to motor. | |
| Anti-load connecting method: | Direct coupling or belt connect. | |
| Paint: | To antirust, primer paint of phenol spray enamel paint. | |
| Protection: | Thermo-switch protection | |
| Select appendix | ||
|---|---|---|
| Feed back signal: | P.G. With TAI-YIH SUN standard. | |
| Power supply voltage: | DC 4.75V~30V | |
| Current consumption: | under 120mA | |
| Output signal: | Single phase output | |
| Input pulse: | 60~1024PPPR | |
| standard pulse rate: | 600PPR/1024PPR | |
| Please indicate more detail for option choice of PPR and output signal (single or two-phase) | ||
| Output shaft dimensions | Foot mounted series dimensions | Wt. | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Shaft end | Bearings | AC | AD | AE | HB | KK | L | LD | M | N | P | S | T | Foot mounted | Flange mounted | ||||||
| D | E | ED | F | G | GA | Load Side | Anti-Load Side | ||||||||||||||
| 11 | 23 | 18 | 4 | 8.5 | 12.5 | 6201 | 6201 | 142 | 120 | 92 | - | 22 | 222 | 37 | 130 | 110 | 160 | 10 | 3.5 | 9 | 9 |
| 14 | 30 | 25 | 5 | 11.0 | 16.0 | 6202 | 6202 | 162 | 133 | 105 | - | 22 | 268 | 24 | 130 | 110 | 160 | 10 | 3.5 | 11 | 12 |
| 19 | 40 | 35 | 6 | 15.5 | 21.5 | 6204 | 6203 | 175 | 149 | 115 | - | 22 | 273 | 48 | 165 | 130 | 200 | 12 | 3.5 | 15 | 16 |
| 24 | 50 | 45 | 8 | 20.0 | 27.0 | 6205 | 6204 | 196 | 161 | 127 | - | 22 | 364 | 106 | 165 | 130 | 200 | 15 | 3.5 | 22 | 25 |
| 28 | 60 | 55 | 8 | 24.0 | 31.0 | 6206 | 6205 | 219 | 176 | 135 | 140 | 28 | 367 | 76 | 215 | 180 | 250 | 15 | 4.0 | 30 | 30 |
| 28 | 60 | 55 | 8 | 24.0 | 31.0 | 6306 | 6305 | 234 | 187 | 144 | 150 | 28 | 428 | 118 | 215 | 180 | 250 | 15 | 4.0 | 40 | 45 |
| 38 | 80 | 75 | 10 | 33.0 | 41.0 | 6308 | 6306 | 268 | 217 | 179 | 169 | 35 | 448 | 74 | 265 | 230 | 300 | 15 | 4.0 | 60 | 65 |
| 38 | 80 | 75 | 10 | 33.0 | 41.0 | 6308 | 6306 | 268 | 217 | 179 | 169 | 35 | 484 | 93 | 265 | 230 | 300 | 19 | 4.0 | 70 | 75 |
| 42 | 110 | 105 | 12 | 37.0 | 45.0 | 6309 | 6307 | 319 | 248 | 211 | 217 | 35 | 612 | 128 | 300 | 250 | 350 | 19 | 5.0 | 115 | 120 |
| 42 | 110 | 105 | 12 | 37.0 | 45.0 | 6309 | 6307 | 319 | 248 | 211 | 217 | 35 | 656 | 151 | 300 | 250 | 350 | 19 | 5.0 | 135 | 140 |
| 48 | 110 | 105 | 14 | 42.5 | 51.5 | 6311 | 6310 | 355 | 285 | 243 | 241 | 52 | 668 | 151 | 350 | 300 | 400 | 19 | 5.0 | 170 | 175 |
| 48 | 110 | 105 | 14 | 42.5 | 51.5 | 6311 | 6310 | 355 | 285 | 243 | 241 | 52 | 668 | 151 | 350 | 300 | 400 | 19 | 5.0 | 180 | 180 |
| 55 | 110 | 105 | 16 | 49.0 | 59.0 | 6312 | 6310 | 319 | 285 | 243 | 241 | 52 | 706 | 170 | 350 | 300 | 400 | 19 | 5.0 | 210 | 220 |
| 60 | 140 | 135 | 18 | 53.0 | 64.0 | 6313 | 6312 | 399 | 332 | 274 | 260 | 60 | 797 | 188 | 400 | 350 | 450 | 19 | 5.0 | 280310 | 280380 |
