AEEF Series Foot Mounted
| Specifications | ||
|---|---|---|
| Type: | 3-phase squirrel cage induction motor (SCIM) | |
| Protecting: | IP54、IP55 | |
| Mounting method: | DFEF/VFEF foot mounted；DFVF/VFVF flange mounted | |
| Cooling method: | Forced cooling (Ic416) | |
| Poles: | 4P，6P，8P | |
| Rated output: | 4P: 1/4~60HP；6P: 1/4~50HP；8P: 1/2~30HP | |
| Input power unit: | 3Phase，220/380/415/440/460V，50/60Hz | |
| Time rating: | Continuous rated | |
| Torque control: | 60Hz~10Hz constant torque | |
| Starting torque: | Rating torque 125% | |
| Insulation class: | F class | |
| Environmental conditions | ||
|---|---|---|
| Installation location: | Indoor ( keeping off the corrosiveness gas and dirt) | |
| Indicated altitude: | Under 1000M height above sea level | |
| Temperature: | -15OC~40℃ | |
| Standard turn toward: | It'll counterclockwise that it turn one's face to motor. | |
| Anti-load connecting method: | Direct coupling or belt connect. | |
| Paint: | To antirust, primer paint of phenol spray enamel paint. | |
| Protection: | Thermo-switch protection | |
| Select appendix | ||
|---|---|---|
| Feed back signal: | P.G. With TAI-YIH SUN standard. | |
| Power supply voltage: | DC 4.75V~30V | |
| Current consumption: | under 120mA | |
| Output signal: | Single phase output | |
| Input pulse: | 60~1024PPPR | |
| standard pulse rate: | 600PPR/1024PPR | |
| Please indicate more detail for option choice of PPR and output signal (single or two-phase) | ||

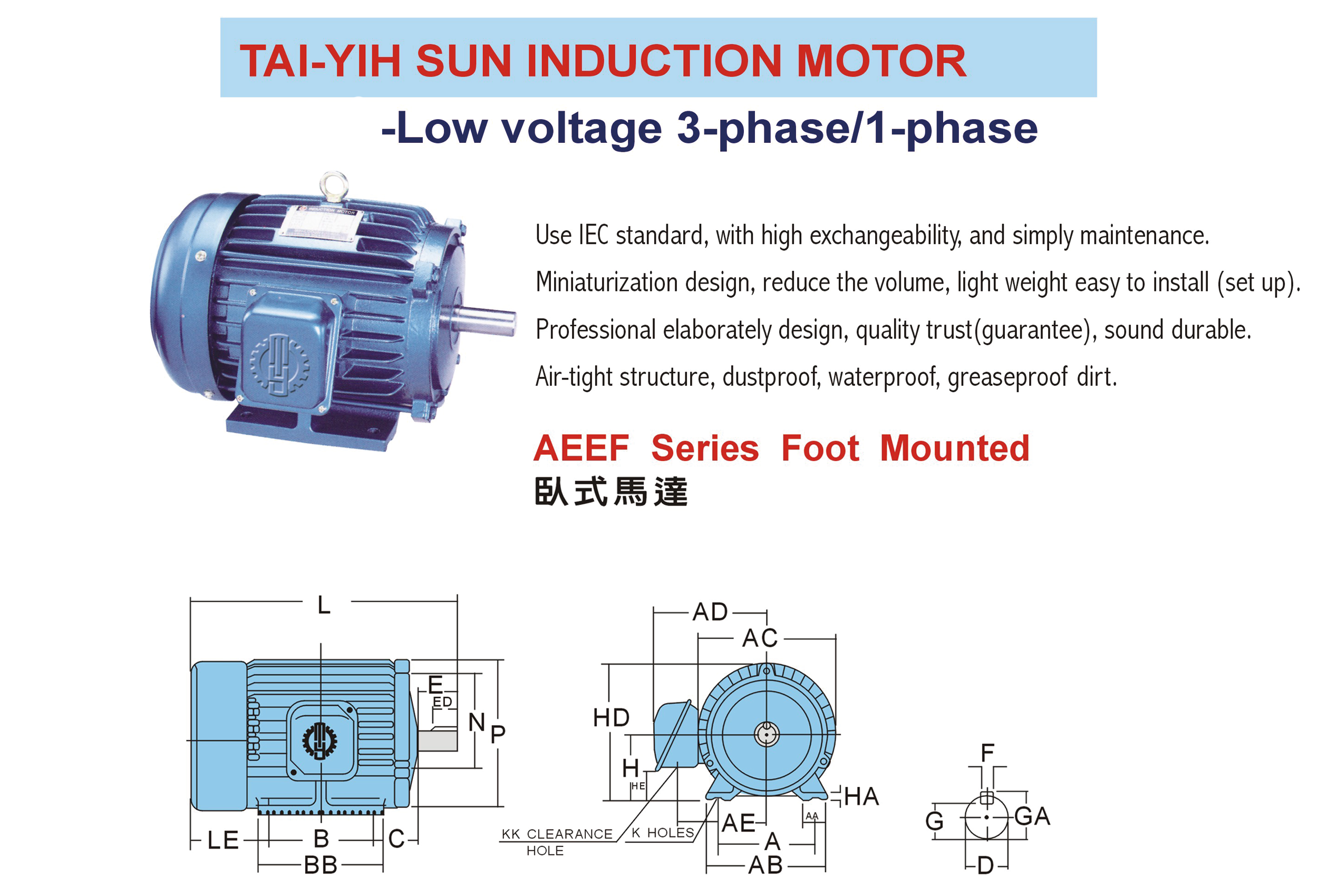

| Specification | Foot mounted series dimensions | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Output | Frame No | A | AA | AB | AC | AD | AE | B | BB | C | H | HA | HC | HD | HE | K | KK | L | |||
| 2P | 4P | 6P | 8P | ||||||||||||||||||
| 1/4 | 1/4 | - | - | 63 | 100 | 28.0 | 120 | 144 | 122 | 94 | 80 | 100 | 40 | 63 | 8.0 | 135 | - | 30 | 7 | 22 | 222 |
| 1/2 | 1/2 | 1/4 | - | 71 | 112 | 37.5 | 138 | 163 | 132 | 104 | 90 | 119 | 45 | 71 | 11.0 | 152 | - | 38 | 7 | 22 | 240 |
| 1 | 1 | 1/2 | - | 80 | 125 | 38.0 | 155 | 176 | 149 | 114 | 100 | 130 | 50 | 80 | 9.0 | 168 | - | 51 | 10 | 22 | 273 |
| 2,3 | 2 | 1 | 1/2 | 90L | 140 | 35.5 | 170 | 200 | 160 | 126 | 125 | 150 | 56 | 90 | 10.0 | 190 | - | 53 | 10 | 22 | 325 |
| - | 3 | 2 | 1 | 100L | 160 | 45.0 | 195 | 219 | 177 | 135 | 140 | 175 | 63 | 100 | 12.5 | - | 243 | 62 | 12 | 28 | 362 |
| 5 | 5 | 3 | 2 | 112M | 190 | 45.0 | 224 | 238 | 187 | 145 | 140 | 175 | 70 | 112 | 14.0 | - | 265 | 65 | 12 | 28 | 388 |
| 7 1/2 , 10 | 7 1/2 | 5 | 3 | 132S | 216 | 46.0 | 254 | 273 | 217 | 180 | 140 | 175 | 89 | 132 | 16.0 | - | 310 | 60 | 12 | 35 | 448 |
| - | 10 | 7 1/2 | 5 | 132M | 216 | 46.0 | 254 | 273 | 217 | 179 | 178 | 213 | 89 | 132 | 16.0 | - | 310 | 60 | 12 | 35 | 486 |
| 15, 20 | 15 | 10 | 7 1/2 | 160M | 254 | 75.0 | 300 | 330 | 248 | 211 | 210 | 250 | 108 | 160 | 18.0 | - | 373 | 75 | 14.5 | 35 | 612 |
| 25 | 20 | 15 | 10 | 160L | 254 | 75.0 | 300 | 330 | 248 | 211 | 254 | 300 | 108 | 160 | 18.0 | - | 373 | 75 | 14.5 | 35 | 656 |
| 30 | - | - | - | 180M | 279 | 80.0 | 355 | 381 | 285 | 243 | 241 | 297 | 121 | 180 | 20.0 | - | 421 | 90 | 14.5 | 52 | 670 |
| - | 25, 30 | 20 | 15 | 180M | 279 | 80.0 | 355 | 381 | 285 | 243 | 241 | 297 | 121 | 180 | 20.0 | - | 421 | 90 | 14.5 | 52 | 670 |
| - | 40 | 25,30 | 20 | 180L | 279 | 80.0 | 355 | 381 | 285 | 243 | 279 | 335 | 121 | 180 | 20.0 | - | 421 | 90 | 14.5 | 52 | 707 |
| - | 50, 60 | 40, 50 | 25, 30 | 200L | 318 | 80.0 | 398 | 421 | 331 | 273 | 305 | 350 | 133 | 200 | 24.0 | - | 469 | 120 | 18.5 | 60 | 797 |
