Suspended Deep Well Pump

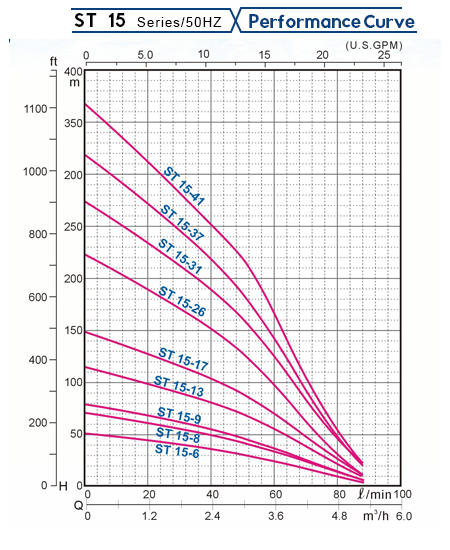

ST 15 Series/50HZ 尺寸規格表 SPECIFICATION

PUMP TYPE
泵浦型式
4D
STAGES
段數

MOTOR
馬力
Q=Capacity 水量PUMP Dimension
泵浦尺寸
/min25303540455060708090
m3/h1.51.82.12.42.73.03.64.24.85.4Lenght(mm)
長度
WEIGHT(Kg)
重量
KWHPH=Total Head in Meters 揚程
ST 15-6 6 0.37 0.5

41 39 37 35 32 29 22 15 7 0 316 2.81
ST 15-8 8 0.55 0.75

54 55 52 48 45 40 30 21 11 0 366 3.26
ST 15-9 9 0.75 1.0

63 60 57 53 49 44 34 23 11 0 391 3.48
ST15-13 13 1.1 1.5

92 88 84 80 74 67 52 35 18 0 492 4.39
ST15-17 17 1.5 2.0

120 113 107 102 94 86 67 45 23 0 593 5.29
ST 15-26 26 2.2 3.0

178 169 159 150 140 123 94 62 25 0 820 7.33
ST 15-31 31 3.0 4.0

221 210 200 187 176 160 123 82 40 0 981 8.75
ST 15-37 37 3.7 5.0

259 245 230 215 200 182 140 92 40 0 1132 10.10
ST 15-41 41 4.0 5.5

295 280 262 248 230 212 160 108 40 0 1236 11.38
