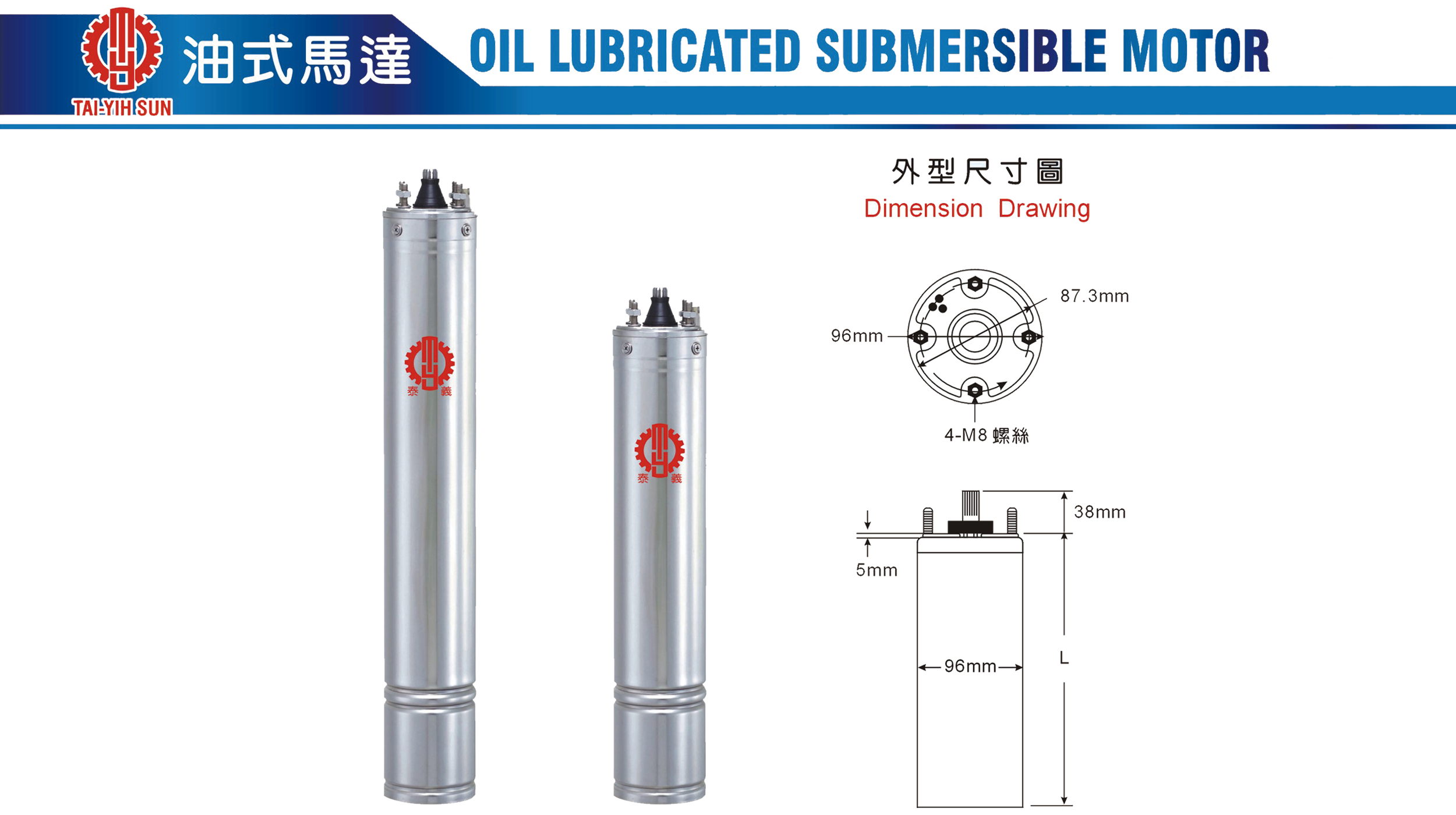

Oil Lubricated Submersible Motor Catalog

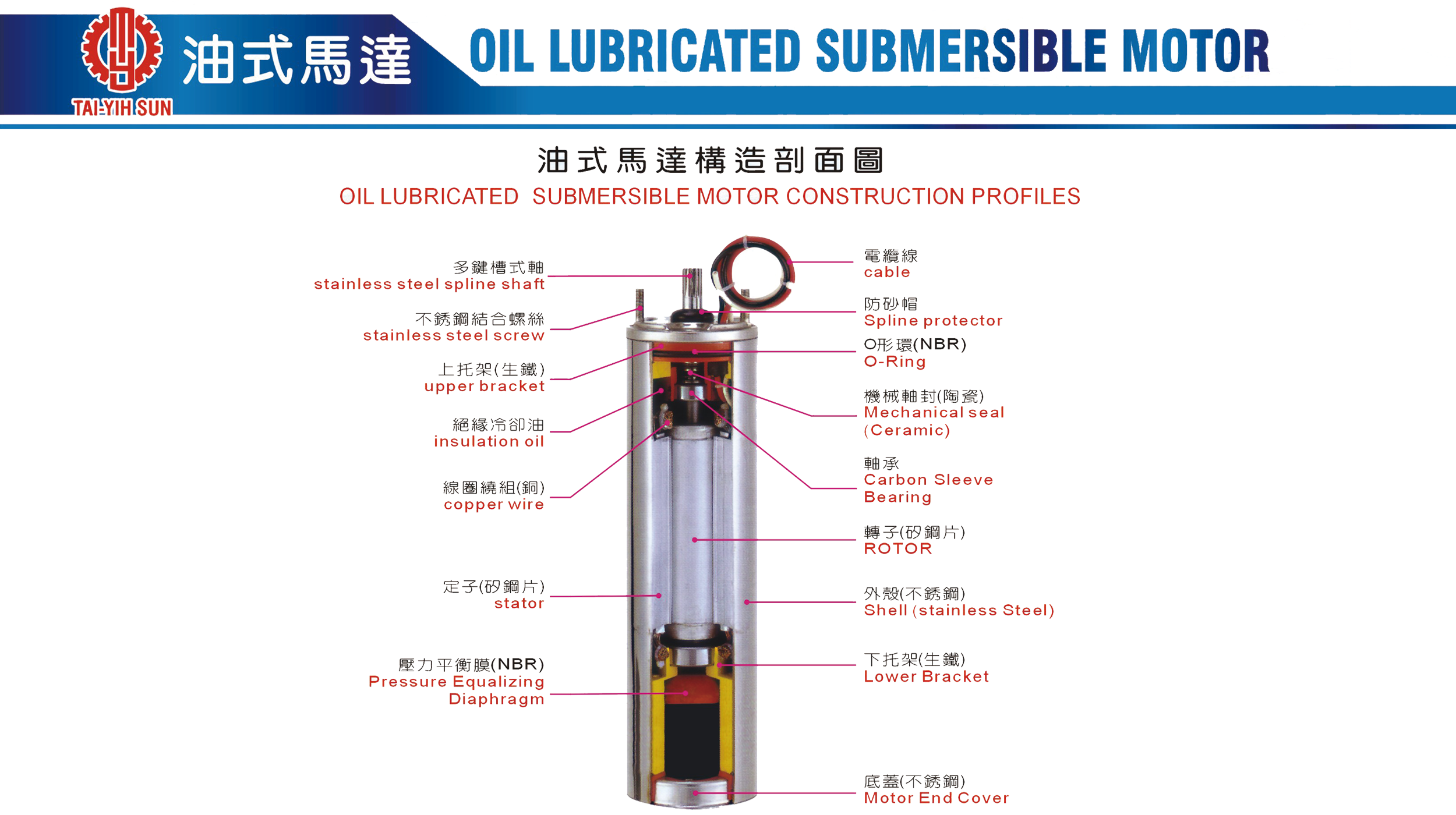

FEATURE
◆ TAI-YIH SUN Submersible motor adopted B grade insulation of copper coil, it's quality will be inspected and controlled strictly, through multi-stage procedure, after putting in the resin liquid for coating and heating slowly more than 5 hour to achieve the best insulation of submersible motor.
◆ TAI-YIH SUN Submersible motor spline shaft and rotor through precision CNC machine processing, equipped with high concentricity and balance between the bearing of rotor, so, TAI-YIH SUN submersible motor is low noise, low vibration, low temperature rising, low power consumption, high efficiency.
◆ TAI-YIH SUN Submersible motor shell is made of AISI 304 stainless steel, equipped with anti-rusted, anti-corrosion, durable and long life.
◆ TAI-YIH SUN Submersible motor adopted transformer oil for cooling to keep the same temperature after long time operation, the submersible motor is not easy burned due to the temperature rising of submersible motor or electric current overloaded.
Specification of Submersible MOTOR
| TYPE | Oil Cooling | ||
|---|---|---|---|
| INSULATION GRADE | B-grade (Temperature 130°c) | ||
| POLE | VOLTAGE | 2P | 220V / 380V |
| PROTECT DEVICE | Automatic Protector | ||
| MOTOR SHELL | Aisi 304 Stainless Steel | ||
| SPLINE SHAFT | Aisi 304 Stainless Steel | ||
| BEARING | Ball Bearings | ||
| OUTLET CABLE | PVC Cable | ||
| MAXIMUM TEMPERATURE | 40°C | ||
| SUITABLE FOR LIGUID | Clean, Low Viscosity and Natural Liguid, NO Including Solid Residue, Fiber of Liguid | ||
Special Specification Will be Accepted by Make-to-order
The performance of submersible MOTOR(50Hz) 2850 rpm
SINGLE-PHASE
| MOTOR MODEL | SPECIFICATIONS | FULL LOAD | LOCKED ROTOR AMPS | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| HP | KW | VOLT | HZ | AMP | WATT | RPM | EFF% | COS% | ||
| OLM4051225 | 1/2 | 0.37 | 230 | 50 | 3.2 | 760 | 2860 | 53 | 97 | 15 |
| OLM4081225 | 3/4 | 0.55 | 230 | 50 | 4.5 | 980 | 2855 | 61 | 95 | 20 |
| OLM4101225 | 1 | 0.75 | 230 | 50 | 5.8 | 1200 | 2850 | 63 | 94 | 25 |
| OLM4151225 | 1.5 | 1.1 | 230 | 50 | 8.2 | 1800 | 2840 | 65 | 96 | 35 |
| OLM4201225 | 2 | 1.5 | 230 | 50 | 10.7 | 2250 | 2840 | 66 | 95 | 40 |
| OLM4301225 | 3 | 2.2 | 230 | 50 | 15 | 3160 | 2830 | 69 | 97 | 60 |
THREE-PHASE
| MOTOR MODEL | SPECIFICATIONS | FULL LOAD | LOCKED ROTOR AMPS | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| HP | KW | VOLT | HZ | AMP | WATT | RPM | EFF% | COS% | ||
| OLM4053225 | 1/2 | 0.37 | 230 | 50 | 2.3 | 560 | 2820 | 57 | 80 | 9 |
| OLM4083225 | 3/4 | 0.55 | 230 | 50 | 2.8 | 840 | 2820 | 67 | 80 | 13 |
| OLM4103225 | 1 | 0.75 | 230 | 50 | 3.8 | 1080 | 2830 | 70 | 79 | 18 |
| OLM4153225 | 1.5 | 1.1 | 230 | 50 | 5.3 | 1500 | 2830 | 73 | 86 | 27 |
| OLM4203225 | 2 | 1.5 | 230 | 50 | 7.2 | 2100 | 2830 | 71 | 84 | 38 |
| OLM4303225 | 3 | 2.2 | 230 | 50 | 10.3 | 3200 | 2820 | 72 | 85 | 58 |
| OLM4403225 | 4 | 3 | 230 | 50 | 13.5 | 4000 | 2840 | 74 | 84 | 75 |
| OLM4503225 | 5 | 3.7 | 230 | 50 | 16.7 | 5000 | 2820 | 74 | 85 | 90 |
| OLM4553225 | 5.5 | 4 | 230 | 50 | 17.6 | 5300 | 2830 | 75 | 83 | 95 |
| OLM4753225 | 7.5 | 5.5 | 230 | 50 | 22.4 | 7400 | 2830 | 75 | 86 | 120 |
| OLM4053325 | 1/2 | 0.37 | 400 | 50 | 1.2 | 560 | 2820 | 57 | 80 | 4.5 |
| OLM4083325 | 3/4 | 0.55 | 400 | 50 | 1.6 | 840 | 2820 | 67 | 80 | 6 |
| OLM4103325 | 1 | 0.75 | 400 | 50 | 2.2 | 1080 | 2830 | 70 | 70 | 9 |
| OLM4153325 | 1.5 | 1.1 | 400 | 50 | 2.8 | 1500 | 2830 | 73 | 80 | 14 |
| OLM4203325 | 2 | 1.5 | 400 | 50 | 3.9 | 2100 | 2830 | 71 | 84 | 20 |
| OLM4303325 | 3 | 2.2 | 400 | 50 | 5.6 | 3200 | 2820 | 72 | 85 | 27 |
| OLM4403325 | 4 | 3 | 400 | 50 | 7.3 | 4000 | 2840 | 74 | 84 | 42 |
| OLM4503325 | 5 | 3.7 | 400 | 50 | 8.6 | 5000 | 2830 | 74 | 85 | 46 |
| OLM4553325 | 5.5 | 4 | 400 | 50 | 10.2 | 5300 | 2830 | 75 | 83 | 58 |
| OLM4753325 | 7.5 | 5.5 | 400 | 50 | 13.2 | 7400 | 2830 | 75 | 86 | 70 |
| OLM4103325 | 10 | 7.5 | 400 | 50 | 18.5 | 9600 | 2830 | 76 | 86 | 100 |
The Performance of single-phase submergible MOTOR(60Hz) 3450 rpm
2 WIRE
| MOTOR MODEL | SPECIFICATIONS | FULL LOAD | OVER LOAD | EFF％ | COS％ | RPM | LOCKED ROTOR AMPS | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HP | KW | VOLT | HZ | S.F. | AMP | W | AMP | W | S.F. | F.L | S.F. | F.L | |||
| OLM4051126 | 0.5 | 0.37 | 110/115 | 60 | 1.6 | 6/7 | 700 | 8.5 | 980 | 54 | 54 | 98 | 96 | 3480 | 26 |
| OLM4051226 | 0.5 | 0.37 | 220/230 | 60 | 1.6 | 3.2/3.4 | 730 | 4.3 | 960 | 58 | 51 | 97 | 92 | 3460 | 13 |
| OLM4081226 | 0.75 | 0.55 | 220/230 | 60 | 1.5 | 4.6/4.8 | 995 | 5.8 | 1300 | 61 | 56 | 95 | 92 | 3460 | 18 |
| OLM4101226 | 1 | 0.75 | 220/230 | 60 | 1.4 | 5.8/6.2 | 1300 | 7.5 | 1650 | 63 | 57 | 95 | 91 | 3450 | 26 |
| OLM4151226 | 1.5 | 1.1 | 220/230 | 60 | 1.3 | 7.2/7.7 | 1930 | 10.5 | 2300 | 65 | 62 | 97 | 95 | 3450 | 34 |
| OLM4201226 | 2 | 1.5 | 220/230 | 60 | 1.25 | 10.2/10.6 | 2236 | 13.2 | 2453 | 66 | 62 | 97 | 95 | 3450 | 48 |
3 WIRE Controlled Box( not include this price )
| MOTOR MODEL | SPECIFICATIONS | FULL LOAD | OVER LOAD | EFF％ | COS％ | RPM | LOCKED ROTOR AMPS | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HP | KW | VOLT | HZ | S.F. | AMP | W | AMP | W | S.F. | F.L | S.F. | F.L | |||
| OLM4051136 | 0.5 | 0.37 | 110/115 | 60 | 1.6 | 6/7 | 700 | 8.5 | 980 | 54 | 50 | 76 | 62 | 3480 | 46 |
| OLM4051236 | 0.5 | 0.37 | 220/230 | 60 | 1.6 | 3.2/3.4 | 730 | 4.3 | 960 | 58 | 51 | 76 | 62 | 3460 | 23 |
| OLM4081236 | 0.75 | 0.55 | 220/230 | 60 | 1.5 | 4.6/4.8 | 995 | 5.8 | 1300 | 61 | 56 | 75 | 64 | 3460 | 32 |
| OLM4101236 | 1 | 0.75 | 220/230 | 60 | 1.4 | 5.8/6.2 | 1300 | 7.5 | 1650 | 63 | 57 | 73 | 62 | 3450 | 39 |
| OLM4151236 | 1.5 | 1.1 | 220/230 | 60 | 1.3 | 7.2/7.7 | 1930 | 10.5 | 2300 | 65 | 62 | 82 | 75 | 3450 | 46 |
| OLM4201236 | 2 | 1.5 | 220/230 | 60 | 1.25 | 10.2/10.6 | 2236 | 13.2 | 2453 | 70 | 66 | 93 | 96 | 3450 | 54 |
| OLM4301236 | 3 | 2.25 | 220/230 | 60 | 1.15 | 15.5/16 | 3390 | 17.5 | 4000 | 66 | 66 | 93 | 92 | 3440 | 65 |
| OLM4501236 | 5 | 3.75 | 220/230 | 60 | 1.15 | 24.5/25 | 5454 | 28 | 6000 | 68 | 68 | 94 | 94 | 3450 | 100 |
The performance of 3-Phase Submersible MOTOR(60Hz) 3450 rpm
| MOTOR MODEL | SPECIFICATIONS | FULL LOAD | OVER LOAD | LINE TO LINE RESISTANCE OHMS | EFF％ | RPM | LOCKED ROTOR AMPS | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HP | KW | VOLT | HZ | S.F | AMP | W | AMP | W | S.F | F.L | ||||
| OLM4053136 | 0.5 | .37 | 200 | 60 | 1.6 | 3 | 590 | 3.6 | 870 | 6.6-8.4 | 68 | 63 | 3450 | 17.8 |
| OLM4053236 | 0.5 | .37 | 230 | 60 | 1.6 | 2.5 | 590 | 3 | 870 | 9.5-11 | 68 | 63 | 3450 | 15.5 |
| OLM4053336 | 0.5 | .37 | 380 | 60 | 1.6 | 1.5 | 590 | 2.2 | 870 | 23-28 | 68 | 63 | 3450 | 9.7 |
| OLM4053436 | 0.5 | .37 | 460 | 60 | 1.6 | 1.3 | 590 | 1.6 | 870 | 38-44 | 68 | 63 | 3450 | 7.5 |
| OLM4083136 | 0.75 | .55 | 200 | 60 | 1.5 | 3.6 | 825 | 4.5 | 1170 | 4.5-5.9 | 70 | 68 | 3450 | 24 |
| OLM4083236 | 0.75 | .55 | 230 | 60 | 1.5 | 3.2 | 825 | 3.9 | 1170 | 6.8-7.8 | 70 | 68 | 3450 | 20 |
| OLM4083336 | 0.75 | .55 | 380 | 60 | 1.5 | 2.0 | 825 | 2.6 | 1170 | 16.5-20 | 70 | 68 | 3450 | 12 |
| OLM4083436 | 0.75 | .55 | 460 | 60 | 1.5 | 1.7 | 825 | 2 | 1170 | 27-31 | 70 | 68 | 3450 | 11 |
| OLM4103136 | 1 | 0.75 | 200 | 60 | 1.4 | 4.6 | 1100 | 5.5 | 1460 | 3.8-4.5 | 71 | 71 | 3450 | 31 |
| OLM4103236 | 1 | 0.75 | 230 | 60 | 1.4 | 4 | 1100 | 4.8 | 1460 | 4.9-5.6 | 71 | 71 | 3450 | 26.9 |
| OLM4103336 | 1 | 0.75 | 380 | 60 | 1.4 | 2.4 | 1100 | 2.9 | 1460 | 12.2-14.9 | 71 | 71 | 3450 | 16.5 |
| OLM4103436 | 1 | 0.75 | 460 | 60 | 1.4 | 2 | 1100 | 2.5 | 1460 | 20-23 | 71 | 71 | 3450 | 13.5 |
| OLM4153136 | 1.5 | 1. 1 | 200 | 60 | 1.3 | 5.8 | 1490 | 6.9 | 1910 | 2.5-3 | 74 | 74 | 3450 | 39 |
| OLM4153236 | 1.5 | 1. 1 | 230 | 60 | 1.3 | 5 | 1490 | 6 | 1910 | 3-4 | 74 | 74 | 3450 | 34 |
| OLM4153336 | 1.5 | 1. 1 | 380 | 60 | 1.3 | 3 | 1490 | 3.7 | 1910 | 8.5-10.5 | 74 | 74 | 3450 | 20 |
| OLM4153436 | 1.5 | 1. 1 | 460 | 60 | 1.3 | 2.5 | 1490 | 3.2 | 1910 | 13-16 | 74 | 74 | 3450 | 16.8 |
| OLM4153536 | 1.5 | 1. 1 | 575 | 60 | 1.3 | 2 | 1490 | 2.4 | 1910 | 20-25 | 74 | 74 | 3450 | 13.5 |
| OLM4203136 | 2 | 1.5 | 200 | 60 | 1.25 | 7.8 | 2180 | 9.4 | 2720 | 1.8-2.5 | 68 | 68 | 3450 | 54 |
| OLM4203236 | 2 | 1.5 | 230 | 60 | 1.25 | 6.8 | 2180 | 8.2 | 2720 | 2.3-3 | 68 | 68 | 3450 | 45 |
| OLM4203336 | 2 | 1.5 | 380 | 60 | 1.25 | 4.1 | 2180 | 5 | 2720 | 6.6-8.2 | 68 | 68 | 3450 | 28.5 |
| OLM4203436 | 2 | 1.5 | 460 | 60 | 1.25 | 3.4 | 2180 | 4.2 | 2720 | 9-12 | 68 | 68 | 3450 | 23.5 |
| OLM4203536 | 2 | 1.5 | 575 | 60 | 1.25 | 2.7 | 2180 | 3.2 | 2720 | 14.5-18.7 | 68 | 68 | 3450 | 18.5 |
| OLM4303136 | 3 | 2.2 | 200 | 60 | 1.15 | 11 | 3010 | 12.7 | 3450 | 1.3-1.7 | 74 | 74 | 3450 | 72 |
| OLM4303236 | 3 | 2.2 | 230 | 60 | 1.15 | 9.5 | 3010 | 11 | 3450 | 1.8-2.2 | 74 | 74 | 3450 | 62 |
| OLM4303336 | 3 | 2.2 | 380 | 60 | 1.15 | 5.9 | 3010 | 6.8 | 3450 | 4.7-6.0 | 74 | 74 | 3450 | 38 |
| OLM4303436 | 3 | 2.2 | 460 | 60 | 1.15 | 4.9 | 3010 | 5.6 | 3450 | 7.2-8.9 | 74 | 74 | 3450 | 32 |
| OLM4303536 | 3 | 2.2 | 575 | 60 | 1.15 | 3.8 | 3010 | 4.5 | 3450 | 11.5-14 | 74 | 74 | 3450 | 25 |
| OLM4503136 | 5 | 3.7 | 200 | 60 | 1.15 | 18.5 | 5100 | 20.7 | 5830 | .7 4-.91 | 77 | 77 | 3450 | 125 |
| OLM4503236 | 5 | 3.7 | 230 | 60 | 1.15 | 16 | 5100 | 18 | 5830 | 1.0-1.5 | 77 | 77 | 3450 | 105 |
| OLM4503336 | 5 | 3.7 | 380 | 60 | 1.15 | 9.8 | 5100 | 11 | 5830 | 2.9-3.6 | 77 | 77 | 3450 | 65 |
| OLM4503436 | 5 | 3.7 | 460 | 60 | 1.15 | 8 | 5100 | 9 | 5830 | 4.0-4.9 | 77 | 77 | 3450 | 55 |
| OLM4503536 | 5 | 3.7 | 575 | 60 | 1.15 | 6.5 | 5100 | 7.3 | 5830 | 6.4-7.8 | 77 | 77 | 3450 | 45 |
| OLM4753136 | 7.5 | 5.5 | 200 | 60 | 1.15 | 26.5 | 7400 | 31 | 8460 | .45-.57 | 78 | 77 | 3470 | 185 |
| OLM4753236 | 7.5 | 5.5 | 230 | 60 | 1.15 | 23 | 7400 | 26.8 | 8460 | .61-.75 | 78 | 77 | 3470 | 165 |
| OLM4753336 | 7.5 | 5.5 | 380 | 60 | 1.15 | 14 | 7400 | 16 | 8460 | 1.6-2.0 | 78 | 77 | 3470 | 98 |
| OLM4753436 | 7.5 | 5.5 | 460 | 60 | 1.15 | 11.5 | 7400 | 13.5 | 8460 | 2.5-3.1 | 78 | 77 | 3470 | 80 |
| OLM4753536 | 7.5 | 5.5 | 575 | 60 | 1.15 | 9.3 | 7400 | 10.8 | 8460 | 4.0-5.0 | 78 | 77 | 3470 | 65 |
| OLM4953336 | 10 | 7.5 | 380 | 60 | 1.15 | 19.5 | 10000 | 21.2 | 11500 | 1.2-1.6 | 77 | 77 | 3450 | 140 |
| OLM4953436 | 10 | 7.5 | 460 | 60 | 1.15 | 16 | 10000 | 17.4 | 11500 | 1.8-2.3 | 77 | 77 | 3450 | 115 |
| OLM4953536 | 10 | 7.5 | 575 | 60 | 1.15 | 12.6 | 10000 | 13.7 | 11500 | 2.8-3.5 | 77 | 77 | 3450 | 94 |
