4DSubmersible
Suspended Deep Well Pump

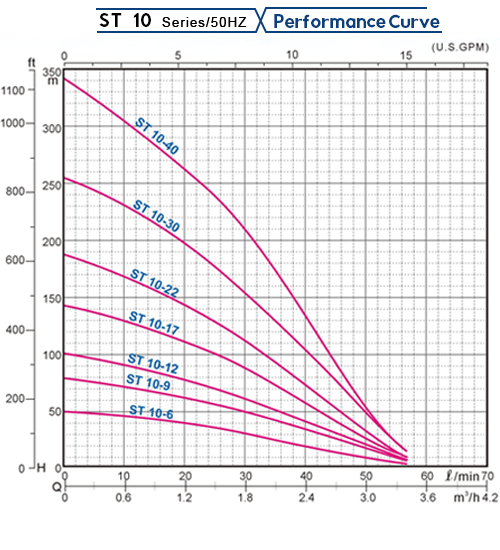

ST 10 Series/50HZ 尺寸規格表 SPECIFICATION
| PUMP TYPE 泵浦型式 4D | STAGES 段數 | MOTOR 馬力 | Q=Capacity 水量 | PUMP Dimension 泵浦尺寸 | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 /min | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 57 | ||||||
| m3/h | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3.0 | 3.42 | Lenght(mm) 長度 | WEIGHT(Kg) 重量 | ||||
| KW | HP | H=Total Head in Meters 揚程 | |||||||||||||||
| ST 10-6 | 6 | 0.37 | 0.5 | 48 | 45 | 42 | 38 | 34 | 29 | 24 | 19 | 13 | 8 | 0 | 293 | 2.69 | |
| ST 10-9 | 9 | 0.55 | 0.75 | 73 | 69 | 65 | 60 | 54 | 47 | 40 | 33 | 23 | 16 | 0 | 360 | 3.28 | |
| ST 10-12 | 12 | 0.75 | 1.0 | 96 | 90 | 84 | 77 | 70 | 60 | 51 | 41 | 30 | 18 | 0 | 428 | 3.88 | |
| ST 10-17 | 17 | 1.1 | 1.5 | 135 | 127 | 119 | 108 | 97 | 85 | 71 | 53 | 37 | 20 | 0 | 540 | 4.87 | |
| ST 10-22 | 22 | 1.5 | 2.0 | 177 | 166 | 155 | 141 | 127 | 111 | 93 | 73 | 51 | 27 | 0 | 652 | 5.86 | |
| ST 10-30 | 30 | 2.2 | 3.0 | 243 | 228 | 214 | 193 | 174 | 153 | 129 | 102 | 75 | 45 | 0 | 866 | 7.69 | |
| ST 10-40 | 40 | 3.0 | 4.0 | 325 | 306 | 283 | 258 | 235 | 209 | 171 | 132 | 88 | 43 | 0 | 1090 | 9.67 | |
