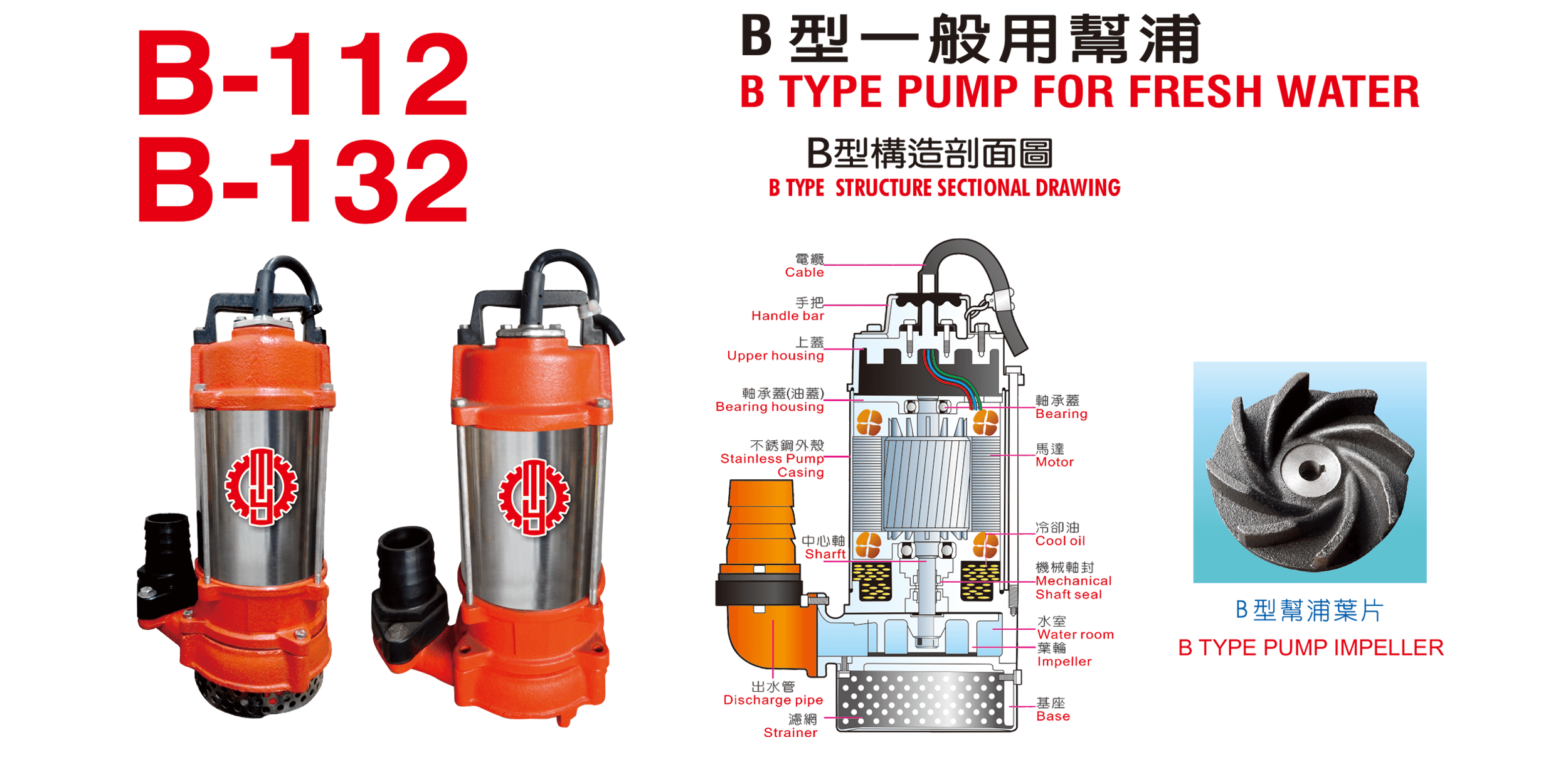

FOR FRESH WATER
| TYPE | Power | Caliber | Voltage | Pole | Max.Head | Max.Flow | Standard Head | Standard Flow | Cable | Weight |
|---|---|---|---|---|---|---|---|---|---|---|
| HP (kw) | mm (in) | V | P | M | m 3 /min | M | m 3 /min | mm 2 Xm | kg | |
| B-112 | 1(0.75) | 50(2") | 220 | 2 | 11.5 | 0.25 | 10 | 0.12 | 2.0 2 x 8 | 14 |
| B-132 | 1(0.75) | 50(2") | 380 | 2 | 15 | 0.3 | 11 | 0.15 | 2.0 2 x 8 | 14 |
| |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|

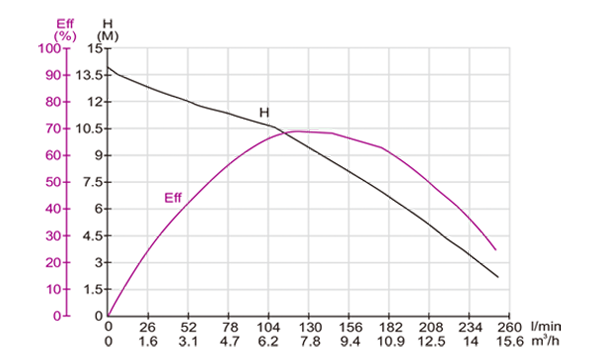

| Type: B-112 | Phase: 單相 | ||||||||||
| Volt: 220V | Hz: 50HZ | ||||||||||
| Amp's: 6.5Amp | Caliber: 50mm | ||||||||||
| Power: 1Hp | Rpm: 2880rpm | ||||||||||
| Pole: 2P | Insulation: F | ||||||||||
 |
|||||||||||
| Motor | Pump | Pump Efficiency | |||||||||
| Volt | Amps | Wi | Eff | Shaft Power | Pressure | Gauge Height | Loss | Head | Flow | Water Power | Pump Eff |
| V | A | KW | % | KW | M | M | M | M | L/min | KW | % |
| 220 | 4.659 | 0.99 | 50 | 0.495 | 0.2 | 2.1 | 0 | 2.3 | 252 | 0.095 | 24.96 |
| 220.1 | 4.286 | 0.907 | 50 | 0.454 | 2.4 | 2.1 | 0 | 4.5 | 219 | 0.162 | 46.54 |
| 220.1 | 4.092 | 0.864 | 50 | 0.432 | 4.2 | 2.1 | 0 | 6.3 | 191 | 0.196 | 59.15 |
| 220.2 | 3.98 | 0.838 | 50 | 0.419 | 4.9 | 2.1 | 0 | 7 | 179 | 0.204 | 63.18 |
| 220.3 | 3.623 | 0.755 | 50 | 0.377 | 7.8 | 2.1 | 0 | 9.9 | 124 | 0.202 | 69.55 |
| 220.2 | 3.435 | 0.71 | 50 | 0.355 | 8.8 | 2.1 | 0 | 10.9 | 100 | 0.178 | 65.13 |
| 220.3 | 3.181 | 0.649 | 50 | 0.325 | 9.5 | 2.1 | 0 | 11.6 | 65 | 0.124 | 49.66 |
| 220.3 | 3.008 | 0.606 | 50 | 0.303 | 10.3 | 2.1 | 0 | 12.4 | 42 | 0.084 | 36.27 |
| 220.3 | 2.868 | 0.57 | 50 | 0.285 | 10.9 | 2.1 | 0 | 13 | 21 | 0.045 | 20.54 |
| 220.3 | 2.75 | 0.538 | 50 | 0.269 | 11.9 | 2.1 | 0 | 14 | 0 | 0 | 0 |
Pump Characteristic Testing Report
| |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|

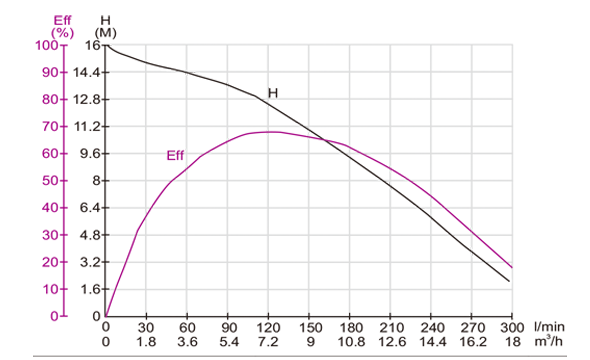

| Type: B-132 | Phase: 三相 | ||||||||||
| Volt: 380V | Hz: 50HZ | ||||||||||
| Amp's: 1.75Amp | Caliber: 50mm | ||||||||||
| Power: 1Hp | Rpm: 2880rpm | ||||||||||
| Pole: 2P | Insulation: F | ||||||||||
 |
|||||||||||
| Motor | Pump | Pump Efficiency | |||||||||
| Volt | Amps | Wi | Eff | Shaft Power | Pressure | Gauge Height | Loss | Head | Flow | Water Power | Pump Eff |
| V | A | KW | % | KW | M | M | M | M | L/min | KW | % |
| 379.3 | 1.771 | 1.036 | 71.5 | 0.741 | 0 | 2.1 | 0 | 2.1 | 299 | 0.103 | 18.07 |
| 378.8 | 1.686 | 0.981 | 71.2 | 0.698 | 2.4 | 2.1 | 0 | 4.5 | 261 | 0.192 | 35.75 |
| 379.2 | 1.64 | 0.951 | 71 | 0.675 | 3.7 | 2.1 | 0 | 5.8 | 242 | 0.231 | 44.46 |
| 379.2 | 1.51 | 0.863 | 70.6 | 0.609 | 6.5 | 2.1 | 0 | 8.6 | 197 | 0.276 | 58.89 |
| 379 | 1.388 | 0.778 | 69.6 | 0.542 | 8.6 | 2.1 | 0 | 10.7 | 156 | 0.275 | 65.91 |
| 378.8 | 1.244 | 0.673 | 67.2 | 0.452 | 10.8 | 2.1 | 0 | 12.9 | 113 | 0.236 | 67.99 |
| 379.2 | 1.15 | 0.601 | 65.6 | 0.394 | 11.7 | 2.1 | 0 | 13.8 | 84 | 0.19 | 62.53 |
| 379.1 | 1.034 | 0.506 | 59.3 | 0.3 | 12.5 | 2.1 | 0 | 14.6 | 47 | 0.113 | 49.01 |
| 379 | 0.963 | 0.444 | 54.9 | 0.244 | 13 | 2.1 | 0 | 15.1 | 24 | 0.059 | 31.59 |
| 379 | 0.908 | 0.387 | 51.5 | 0.199 | 13.9 | 2.1 | 0 | 16 | 0 | 0 | 0 |
