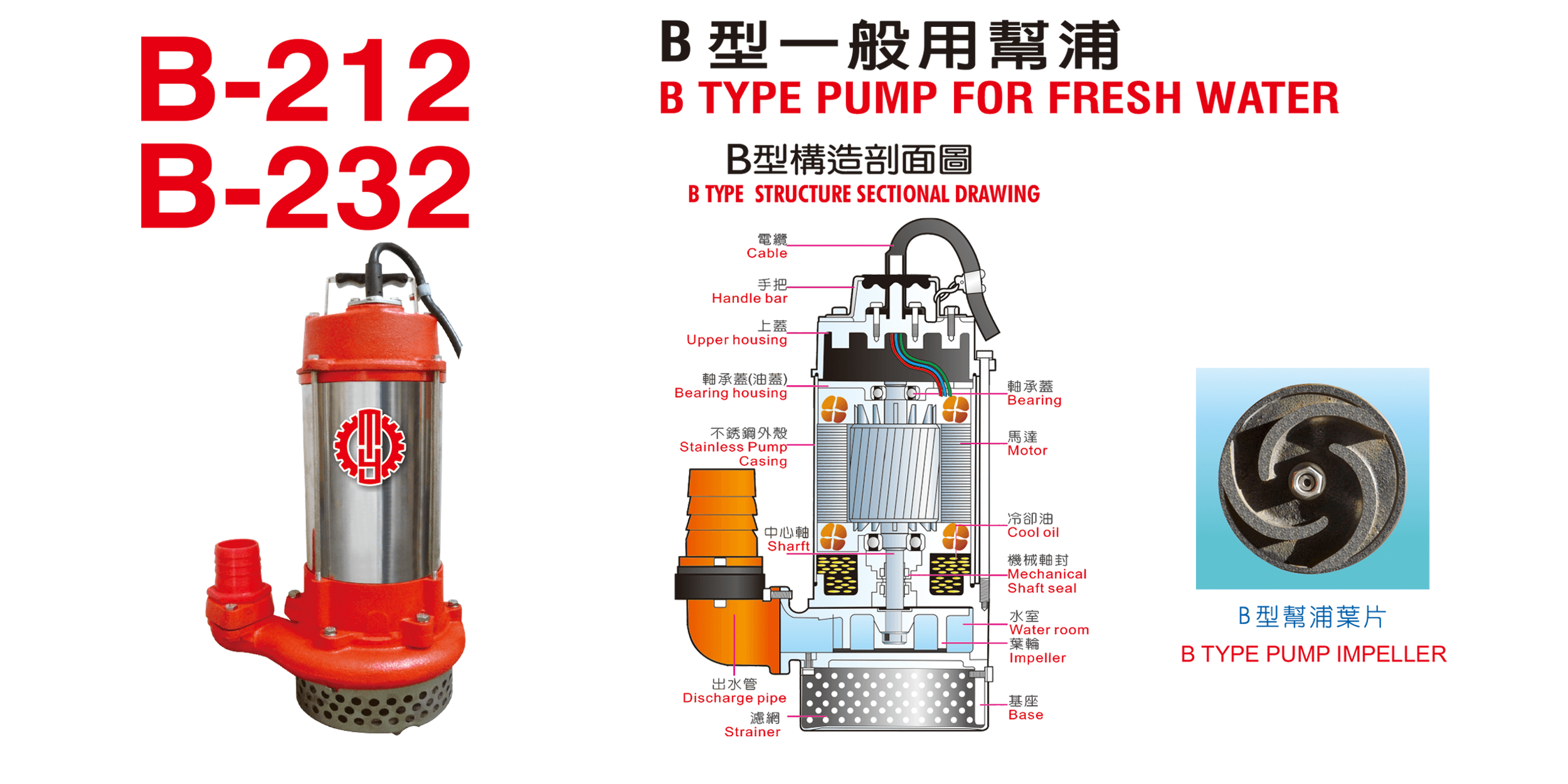

FOR FRESH WATER
| TYPE | Power | Caliber | Voltage | Pole | Max.Head | Max.Flow | Standard Head | Standard Flow | Cable | Weight |
|---|---|---|---|---|---|---|---|---|---|---|
| HP (kw) | mm (in) | V | P | M | m 3 /min | M | m 3 /min | mm 2 Xm | kg | |
| B-212 | 2(1.5) | 50(2") | 220 | 2 | 20 | 0.4 | 16 | 0.25 | 3.5 2 x 10 | 30 |
| B-232 | 2(1.5) | 50(2") | 380 | 2 | 20 | 0.4 | 14 | 0.25 | 3.5 2 x 10 | 30 |
| |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|

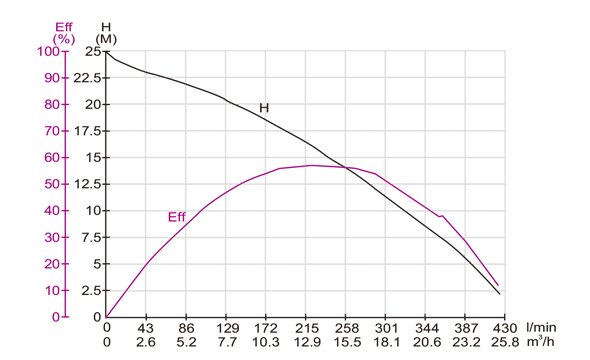

| Type: B-212 | Phase: 單相 | ||||||||||
| Volt: 220V | Hz: 50HZ | ||||||||||
| Amp's: 13Amp | Caliber: 50mm | ||||||||||
| Power: 2Hp | Rpm: 2880rpm | ||||||||||
| Pole: 2P | Insulation: F | ||||||||||
 |
|||||||||||
| Motor | Pump | Pump Efficiency | |||||||||
| Volt | Amps | Wi | Eff | Shaft Power | Pressure | Gauge Height | Loss | Head | Flow | Water Power | Pump Eff |
| V | A | KW | % | KW | M | M | M | M | L/min | KW | % |
| 219.2 | 12.837 | 2.613 | 50 | 1.306 | 0 | 2.1 | 0 | 2.1 | 425 | 0.146 | 11.2 |
| 219.4 | 11.381 | 2.316 | 50 | 1.158 | 5.1 | 2.1 | 0 | 7.2 | 367 | 0.429 | 37 |
| 219.4 | 11.144 | 2.266 | 50 | 1.133 | 7.9 | 2.1 | 0 | 10 | 324 | 0.529 | 46.7 |
| 219.4 | 10.646 | 2.162 | 50 | 1.081 | 11.2 | 2.1 | 0 | 13.3 | 273 | 0.592 | 54.8 |
| 219.5 | 10.326 | 0.093 | 50 | 1.047 | 13.7 | 2.1 | 0 | 15.8 | 228 | 0.589 | 56.3 |
| 219.5 | 9.792 | 1.979 | 50 | 0.99 | 16.7 | 2.1 | 0 | 18.8 | 168 | 0.517 | 52.3 |
| 219.6 | 9.347 | 1.884 | 50 | 0.942 | 18.7 | 2.1 | 0 | 20.8 | 120 | 0.406 | 43.1 |
| 219.6 | 8.957 | 1.794 | 50 | 0.897 | 20.2 | 2.1 | 0 | 22.3 | 73 | 0.265 | 29.5 |
| 219.7 | 8.48 | 1.687 | 50 | 0.843 | 21.3 | 2.1 | 0 | 23.4 | 32 | 0.121 | 14.4 |
| 219.8 | 8.074 | 1.594 | 50 | 0.797 | 22.9 | 2.1 | 0 | 25 | 0 | 0 | 0 |

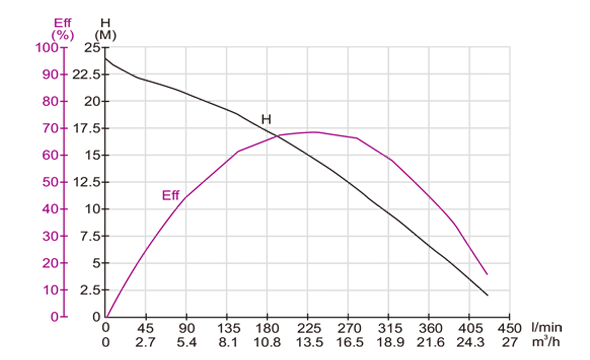

Pump Characteristic Testing Report
| |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Type: B-232 | Phase: 三相 | ||||||||||
| Volt: 380V | Hz: 50HZ | ||||||||||
| Amp's: 3.5Amp | Caliber: 50mm | ||||||||||
| Power: 2Hp | Rpm: 2880rpm | ||||||||||
| Pole: 2P | Insulation: F | ||||||||||
 |
|||||||||||
| Motor | Pump | Pump Efficiency | |||||||||
| Volt | Amps | Wi | Eff | Shaft Power | Pressure | Gauge Height | Loss | Head | Flow | Water Power | Pump Eff |
| V | A | KW | % | KW | M | M | M | M | L/min | KW | % |
| 379.1 | 3.545 | 2.139 | 73.9 | 1.581 | 0 | 2.1 | 0 | 2.1 | 426 | 0.146 | 15.64 |
| 379.1 | 3.338 | 2.008 | 74.3 | 1.492 | 3.9 | 2.1 | 0 | 6 | 371 | 0.367 | 41.82 |
| 379.1 | 3.267 | 1.963 | 74.2 | 1.457 | 5.9 | 2.1 | 0 | 8 | 341 | 0.446 | 52.02 |
| 379.2 | 3.174 | 1.904 | 74.2 | 1.412 | 9.5 | 2.1 | 0 | 11.6 | 287 | 0.545 | 65.62 |
| 379.2 | 3.158 | 1.893 | 74.2 | 1.404 | 12.1 | 2.1 | 0 | 14.2 | 243 | 0.564 | 68.17 |
| 379.2 | 2.909 | 1.73 | 74 | 1.28 | 16.7 | 2.1 | 0 | 18.8 | 150 | 0.459 | 60.86 |
| 379.2 | 2.921 | 1.738 | 74 | 1.286 | 16.7 | 2.1 | 0 | 18.8 | 149 | 0.456 | 60.35 |
| 379.2 | 2.619 | 1.537 | 73.8 | 1.134 | 20 | 2.1 | 0 | 22.1 | 45 | 0.164 | 24.48 |
| 379.3 | 2.588 | 1.516 | 73.6 | 1.116 | 20.2 | 2.1 | 0 | 22.3 | 36 | 0.131 | 20.06 |
| 379.3 | 2.49 | 1.45 | 73 | 1.058 | 21.9 | 2.1 | 0 | 24 | 0 | 0 | 0 |
