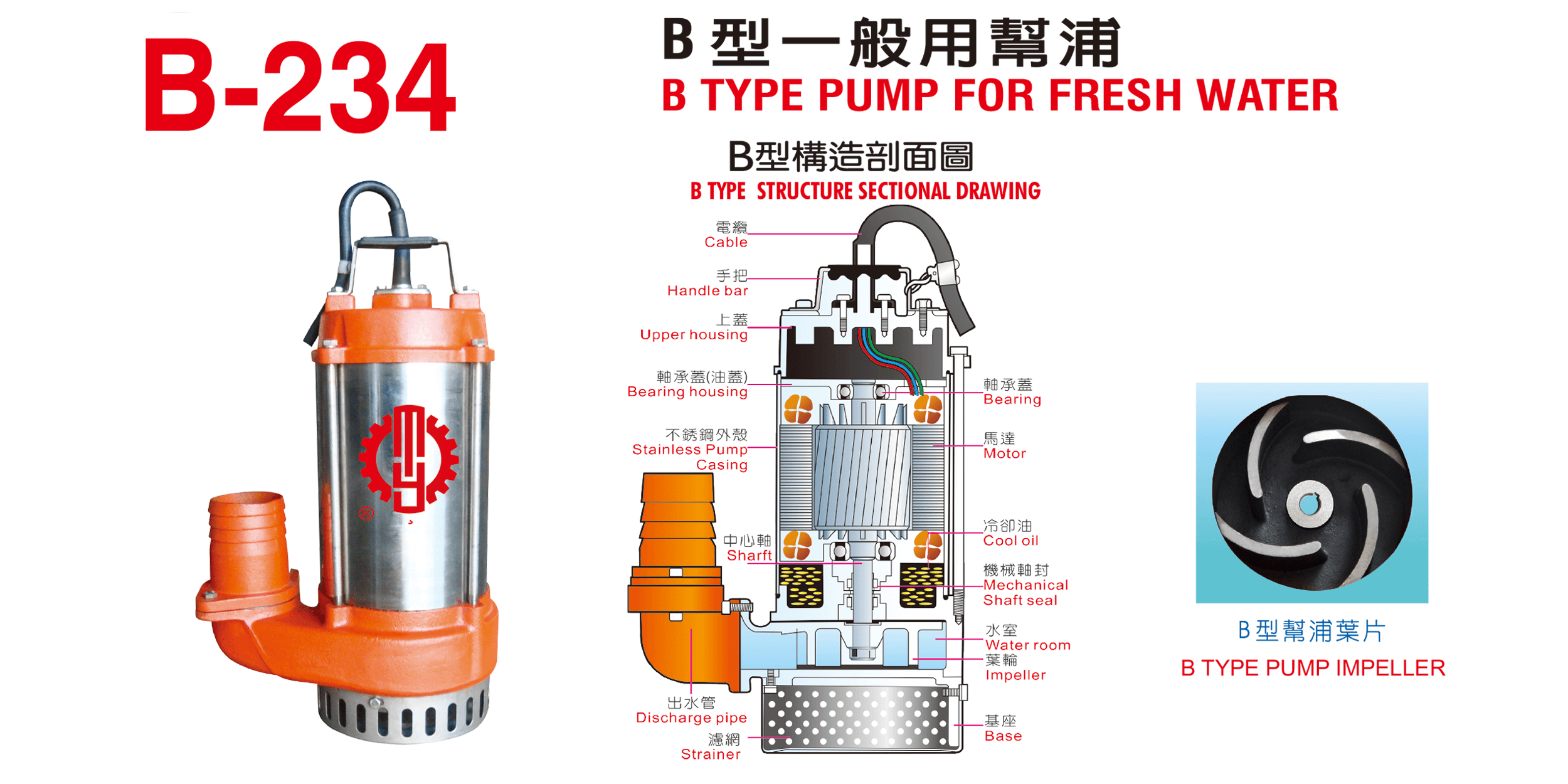

FOR FRESH WATER
| TYPE | Power | Caliber | Voltage | Pole | Max.Head | Max.Flow | Standard Head | Standard Flow | Cable | Weight |
|---|---|---|---|---|---|---|---|---|---|---|
| HP (kw) | mm (in) | V | P | M | m 3 /min | M | m 3 /min | mm 2 Xm | kg | |
| B-234 | 2(1.5) | 100(4") | 380 | 4 | 10 | 1.0 | 6 | 0.5 | 3.5 2 x 10 | 35 |
| |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Type: B-234 | Phase: 三相 |  |
|||||||||
| Volt: 380V | Hz: 50HZ | ||||||||||
| Amp's: 3.5Amp | Caliber: 100mm | ||||||||||
| Power: 2Hp | Rpm: 1440rpm | ||||||||||
| Pole: 4P | Insulation: F | ||||||||||
| Motor | Pump | Pump Efficiency | |||||||||
| Volt | Amps | Wi | Eff | Shaft Power | Pressure | Gauge Height | Loss | Head | Flow | Water Power | Pump Eff |
| V | A | KW | % | KW | M | M | M | M | L/min | KW | % |
| 379.4 | 3.007 | 1.605 | 74.1 | 1.189 | 0.2 | 2.1 | 0 | 2.3 | 872 | 0.333 | 36.4 |
| 379.2 | 2.864 | 1.506 | 74 | 1.114 | 1.5 | 2.1 | 0 | 3.6 | 782 | 0.464 | 54.21 |
| 379 | 2.832 | 1.484 | 73.9 | 1.098 | 1.9 | 2.1 | 0 | 4 | 726 | 0.479 | 56.68 |
| 378.9 | 2.612 | 1.326 | 73.8 | 0.978 | 3.8 | 2.1 | 0 | 5.9 | 529 | 0.51 | 67.86 |
| 379.4 | 2.551 | 1.281 | 73.4 | 0.94 | 4.1 | 2.1 | 0 | 6.2 | 490 | 0.495 | 68.51 |
| 378.7 | 2.492 | 1.236 | 73 | 0.902 | 4.5 | 2.1 | 0 | 6.6 | 427 | 0.462 | 66.56 |
| 379.2 | 2.281 | 1.071 | 71.5 | 0.766 | 5.4 | 2.1 | 0 | 7.5 | 275 | 0.337 | 57.2 |
| 379.1 | 2.089 | 0.909 | 70.2 | 0.638 | 6.2 | 2.1 | 0 | 8.3 | 85 | 0.115 | 23.53 |
| 379.1 | 2.037 | 0.861 | 69.9 | 0.602 | 6.6 | 2.1 | 0 | 8.7 | 7 | 0.009 | 2.08 |
| 379 | 2.014 | 0.841 | 69.7 | 0.586 | 6.7 | 2.1 | 0 | 8.8 | 0 | 0 | 0 |

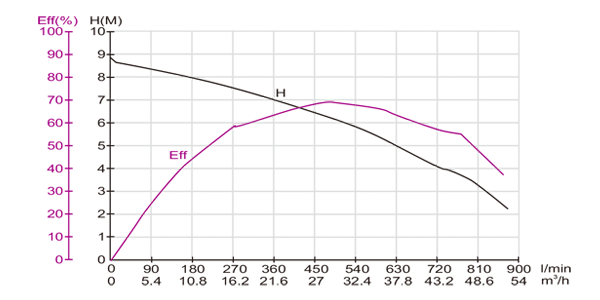

Pump Characteristic Testing Report
