ROOTS BLOWER

Roots Blowes

FEATURE

◆Wide range for air volume pressure and vacuum.

1. Bore：25m/m~ 350m/m(1 "~14")
2. Capacity：0.1 ~250m3/min
3. Pressure：0 ~ 8000mmaq
4. Vacuum：-5000mmaq

◆Satable air flow and less pressure variation.
◆Cleanair not with oil moist.
◆Construction simple and easy maintenance.
◆Oil-Bearings are all lubricated byoil long life.

TY-040 (1.5") THE PERFORMANCE OF ROOTS BLOWER (FOR PRESSURE)

TYPERPMQs (m3/min)   PRESSURE (mmAq)   La (Kw)
1000mmAq2000mmAq3000mmAq4000mmAq5000mmAq6000mmAq7000mmAq8000mmAq
QsLaQsLaQsLaQsLaQsLaQsLaQsLaQsLa
TY-040
(1.5")
1650 0.60 0.19 0.57 0.37 0.54 0.53 0.51 0.67 0.49 0.81 0.48 0.94
1800 0.68 0.21 0.64 0.40 0.61 0.57 0.59 0.74 0.57 0.88 0.55 1.02
1950 0.75 0.23 0.71 0.43 0.69 0.62 0.66 0.80 0.64 0.96 0.62 1.11
2100 0.83 0.24 0.79 0.47 0.76 0.67 0.74 0.86 0.71 1.03 0.70 1.19
2250 0.90 0.26 0.86 0.50 0.84 0.72 0.81 0.92 0.79 1.11 0.77 1.28
2400 0.97 0.28 0.94 0.53 0.91 0.77 0.88 0.98 0.86 1.18 0.85 1.36
2550 1.05 0.30 1.01 0.57 0.98 0.81 0.96 1.04 0.94 1.25 0.92 1.45

TYV-040 (1.5") THE PERFORMANCE OF ROOTS BLOWER (FOR VACUUM)

TYPERPMQs (m3/min)   PRESSURE (mmAq)   La (Kw)
-1000mmAq-2000mmAq-2500mmAq-3000mmAq-3500mmAq-4000mmAq-4500mmAq-5000mmAq
QsLaQsLaQsLaQsLaQsLaQsLaQsLaQsLa
TYV-040
(1.5")
1650 0.60 0.19 0.58 0.37 0.55 0.44 0.54 0.50 0.50 0.56 0.48 0.62
1800 0.68 0.21 0.65 0.40 0.62 0.48 0.61 0.55 0.58 0.61 0.55 0.67
1950 0.75 0.23 0.72 0.43 0.70 0.51 0.69 0.59 0.65 0.67 0.62 0.73
2100 0.83 0.24 0.80 0.47 0.77 0.55 0.76 0.64 0.72 0.72 0.70 0.79
2250 0.90 0.26 0.87 0.50 0.85 0.59 0.84 0.69 0.80 0.77 0.77 0.84
2400 0.97 0.28 0.95 0.53 0.92 0.63 0.91 0.73 0.87 0.82 0.85 0.90
2550 1.05 0.30 1.02 0.57 0.99 0.67 0.98 0.78 0.95 0.87 0.92 0.95
MODELABCDEFGHJKLMNPRSTWt. (kg)
TY-040 160 190 120 15 350 80 15 10 12 340 40 43 50 400 15 135 1.5 25

◆表列重量不含馬達(WT. NOT INCLUDING MOTOR)

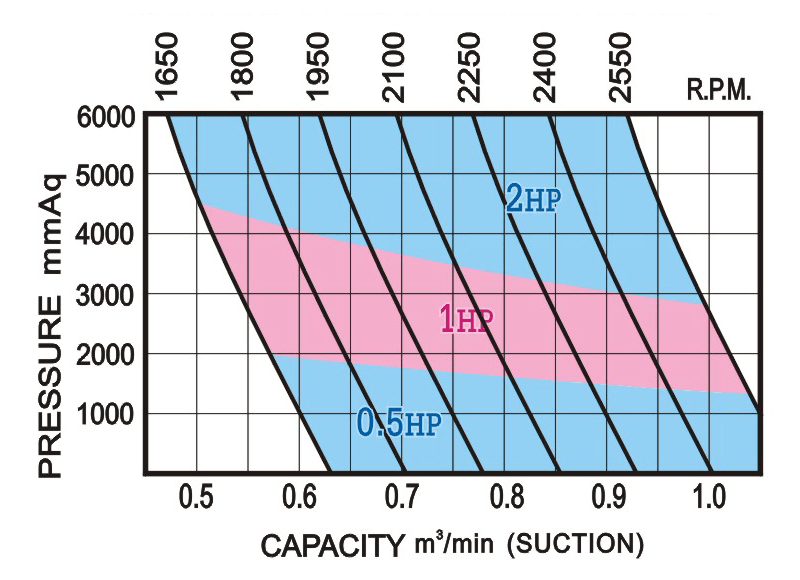

TY型性能曲線

PRESSURE PERFORMANCE CURVE

TYV型性能曲線

PRESSURE PERFORMANCE CURVE

噪音表

NOISE LEVEL OF BLOWER
