ROOTS BLOWER

TY-200/250 (8"/10") 型性能表 (壓送式)

TYPERPMQs (m3/min)   PRESSURE (mmAq)   La (Kw)
1000mmAq2000mmAq3000mmAq4000mmAq5000mmAq6000mmAq7000mmAq8000mmAq
QsLaQsLaQsLaQsLaQsLaQsLaQsLaQsLa
TY-200
(8")
600 17.01 4.84 15.95 9.27 15.04 13.32 14.21 17.06 13.53 20.51 12.93 23.71 12.40 26.68 11.98 29.45
750 22.68 6.05 21.62 11.58 20.71 16.65 19.88 21.32 19.20 25.64 18.60 29.64 18.07 33.36 17.65 36.82
900 28.35 7.27 27.29 13.90 26.38 19.98 25.55 25.59 24.87 30.77 24.27 35.57 23.74 40.03 23.32 44.18
1050 34.02 8.48 32.96 16.22 32.05 23.32 31.22 29.85 30.54 35.89 29.94 41.49 29.41 46.70 28.99 51.55
1200 39.69 9.69 38.63 18.53 37.72 26.65 36.89 34.12 36.21 41.02 35.61 47.42 35.08 53.37 34.66 58.91
1350 45.36 10.90 44.30 20.85 43.39 29.98 42.56 38.38 41.88 46.15 41.28 53.35 40.75 60.04 40.33 66.27
1500 51.03 12.11 49.97 23.17 49.06 33.31 48.23 42.65 47.55 51.28 46.95 59.28 46.42 66.71 46.00 73.64
TY-250
(10")
600 27.72 7.40 26.22 14.16 24.89 20.35 23.68 26.06 22.58 31.34 21.60 36.23 20.73 40.77 19.98 45.00
750 36.38 9.25 34.88 17.70 33.55 25.44 32.34 32.58 31.24 39.17 30.26 45.28 29.39 50.96 28.64 56.25
900 45.05 11.10 43.54 21.24 42.22 30.53 41.00 39.09 39.91 47.01 38.92 54.34 38.06 61.15 37.31 67.50
1050 53.71 12.95 52.21 24.77 50.88 35.62 49.67 45.61 48.57 54.81 47.59 63.39 46.72 71.34 45.97 78.75
1200 62.37 14.80 60.87 28.31 59.54 40.71 58.33 52.12 57.23 62.67 56.25 72.45 55.38 81.54 54.63 90.00
1350 71.03 16.65 69.53 31.85 68.20 45.80 66.99 58.64 65.89 70.51 64.91 81.51 64.04 91.73 63.29 101.3
1500 79.70 18.50 78.19 35.39 76.87 50.89 75.65 65.16 74.56 78.34 73.57 90.56 72.71 101.9 71.96 112.5

TYV-200/250 (8"/10") 型性能表 (真空用)

TYPERPMQs (m3/min)   PRESSURE (mmAq)   La (Kw)
-1000mmAq-2000mmAq-2500mmAq-3000mmAq-3500mmAq-4000mmAq-4500mmAq-5000mmAq
QsLaQsLaQsLaQsLaQsLaQsLaQsLaQsLa
TYV-200
(8")
600 17.01 4.84 15.99 9.27 15.42 11.34 14.86 13.32 14.21 15.23 13.49 17.06 12.78 18.82 11.98 20.51
750 22.68 6.05 21.66 11.58 21.09 14.17 20.53 16.65 19.88 19.04 19.16 21.32 18.45 23.52 17.65 25.64
900 28.35 7.27 27.33 13.90 26.76 17.01 26.20 19.98 25.55 22.84 24.83 25.59 24.12 28.23 23.32 30.77
1050 34.02 8.48 33.00 16.22 32.43 19.84 31.87 23.32 31.22 26.65 30.50 29.85 29.79 32.93 28.99 35.89
1200 39.69 9.69 38.67 18.53 38.10 22.67 37.54 26.65 36.89 30.46 36.17 34.12 35.46 37.64 34.66 41.02
1350 45.36 10.90 44.34 20.85 43.77 25.51 43.21 29.98 42.56 34.26 41.84 38.38 41.13 42.34 40.33 46.15
1500 51.03 12.11 50.01 23.17 49.44 28.34 48.88 33.31 48.23 38.07 47.51 42.65 46.80 47.05 46.00 51.28
22TYV-250
(10")
600 27.72 7.40 26.22 14.16 25.35 17.32 24.43 20.35 23.45 23.27 22.35 26.06 21.19 28.75 19.98 31.34
750 36.38 9.25 34.88 17.70 34.01 21.65 33.09 25.44 32.11 29.08 31.01 32.58 29.86 35.94 28.64 39.17
900 45.05 11.10 43.54 21.24 42.68 25.98 41.75 30.53 40.77 34.90 39.67 39.09 38.52 43.13 37.31 47.01
1050 53.71 12.95 52.21 24.77 51.34 30.31 50.42 35.62 49.43 40.72 48.34 45.61 47.18 50.31 45.97 54.84
1200 62.37 14.80 60.87 28.31 60.00 34.64 59.08 40.71 58.10 46.53 57.00 52.12 55.84 57.50 54.63 62.67
1350 71.03 16.65 69.53 31.85 68.66 38.97 67.74 45.80 66.72 52.35 65.66 58.64 64.51 64.69 63.29 70.51
1500 79.70 18.50 78.19 35.39 77.33 43.30 76.40 50.89 75.42 58.16 74.32 65.16 73.17 71.88 71.96 78.34

噪音表

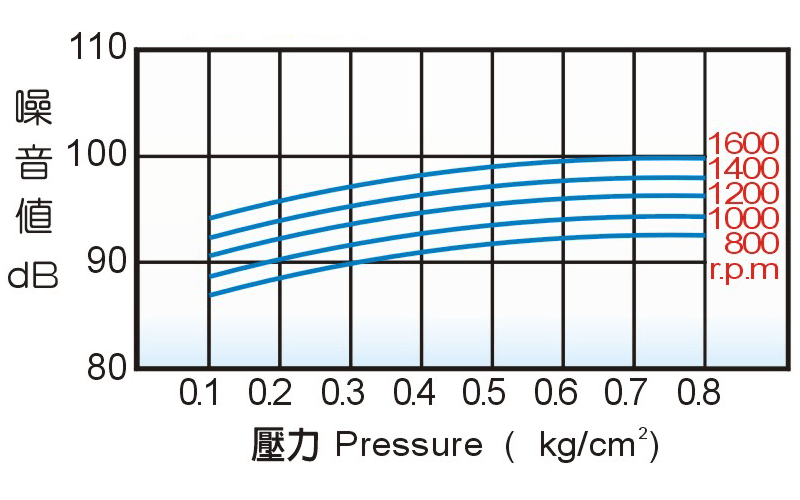

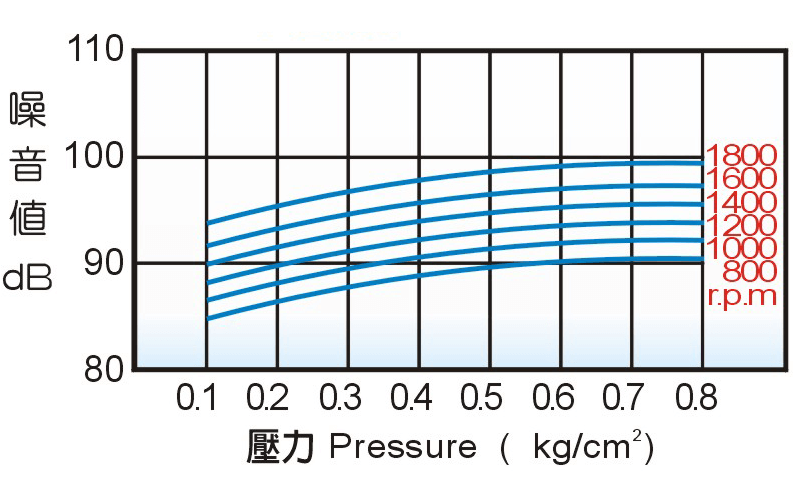

NOISE LEVEL OF BLOWER

TY-200

TY-250

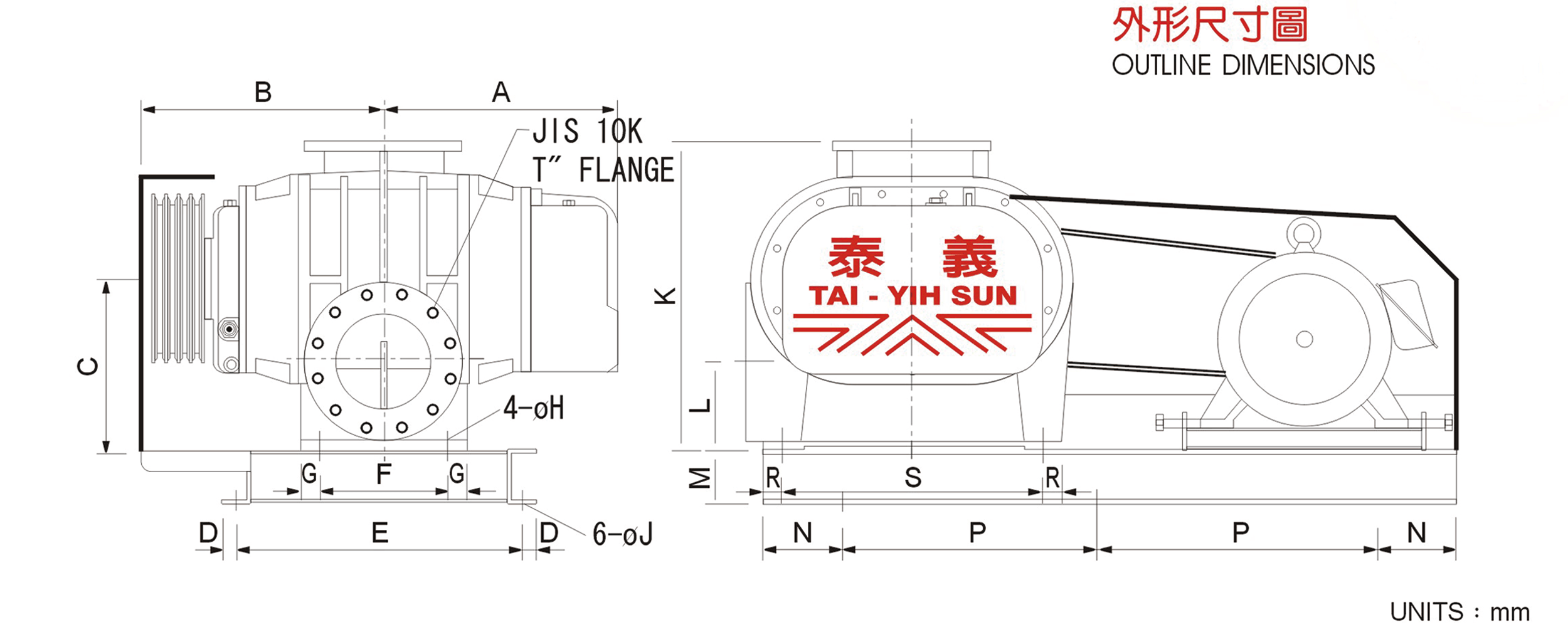

MODELABCDEFGHJKLMNPRSTWt. (kg)
TY-200 515 495 363 30 730 270 35 23 19 650 190 125 200 550 40 550 8 720
TY-250 605 595 388 30 730 460 35 23 19 675 225 125 200 550 40 550 10 913

表列重量不含馬達(WT. NOT INCLUDING MOTOR)

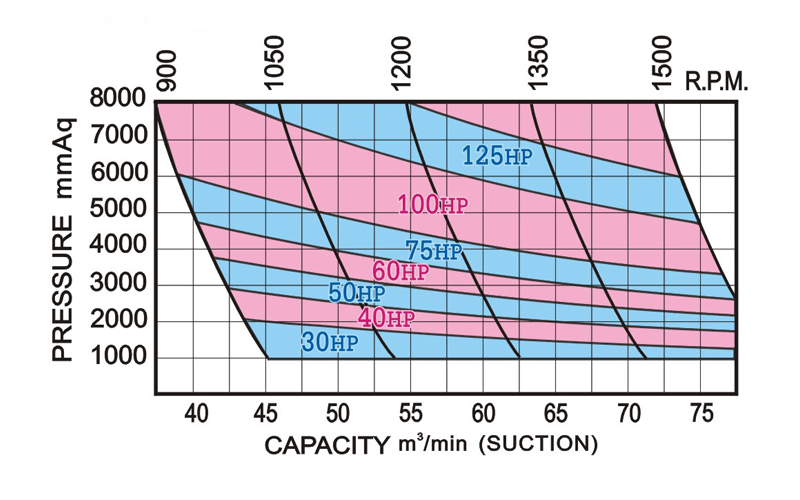

TY型性能曲線 PRESSURE PERFORMANCE CURVE

TY-200

TY-250

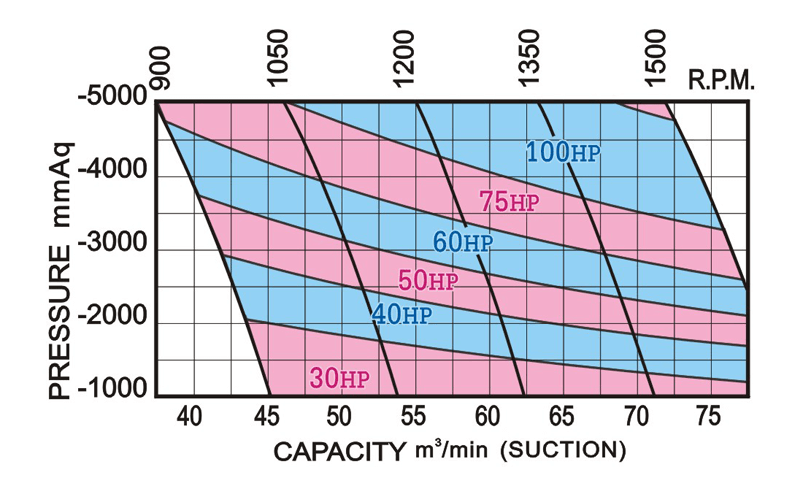

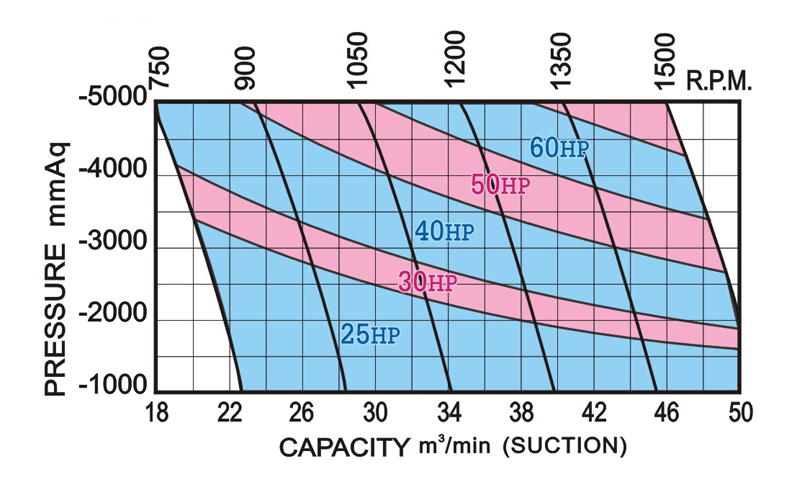

TYV型性能曲線 PRESSURE PERFORMANCE CURVE

TYV-200

TYV-250
