6D深井泵
Suspended Deep Well Pump

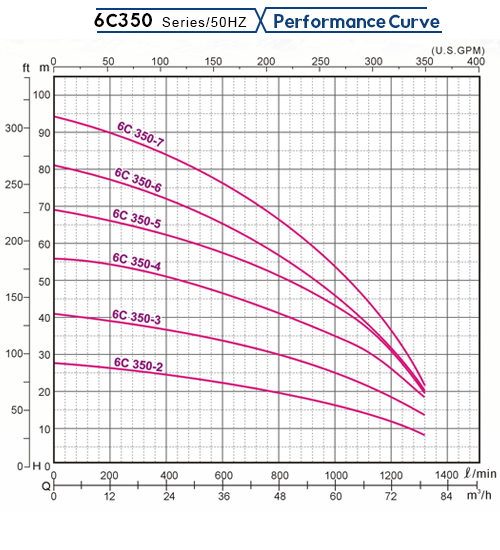

6C350 Series/50HZ 尺寸規格表 SPECIFICATION
| PUMP TYPE 泵浦型式 6D | STAGES 段數 | MOTOR 馬力 | Q=Capacity 水量 | PUMP Dimension 泵浦尺寸 | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 /min | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 | 1406 | ||||||
| m3/h | 18 | 24 | 30 | 36 | 42 | 48 | 54 | 60 | 66 | 72 | 84.4 | Lenght(mm) 長度 | WEIGHT(Kg) 重量 | ||||
| KW | HP | H=Total Head in Meters 揚程 | |||||||||||||||
| 6C 350-2 | 2 | 5.5 | 7.5 | 26 | 25 | 23 | 22 | 21 | 19 | 18 | 16 | 15 | 12 | 0 | 437 | 7.07 | |
| 6C 350-3 | 3 | 7.5 | 10 | 39 | 37 | 35 | 33 | 31 | 29 | 28 | 25 | 22 | 18 | 0 | 576 | 9.06 | |
| 6C 350-4 | 4 | 9 | 12.5 | 53 | 51 | 47 | 45 | 43 | 41 | 38 | 35 | 31 | 25 | 0 | 714 | 11.05 | |
| 6C 350-5 | 5 | 11 | 15 | 66 | 62 | 58 | 55 | 53 | 50 | 47 | 43 | 37 | 30 | 0 | 852 | 13.03 | |
| 6C 350-6 | 6 | 13 | 17.5 | 75 | 72 | 67 | 62 | 59 | 55 | 51 | 46 | 39 | 30 | 0 | 1032 | 16.15 | |
| 6C 350-7 | 7 | 15 | 20 | 88 | 83 | 77 | 73 | 69 | 65 | 60 | 54 | 45 | 35 | 0 | 1176 | 18.19 | |
